Options
Grain Return Options
CR Manufacturing also offers options to safely and efficiently return your grain samples to the grain truck or one of our reclaim totes without having to leave the scale office saving your company time and without risking any unnecessary injuries. Our grain return systems allow you to convey your tested samples back to the truck, elevator or a tote. They can also be used to transfer samples between locations such as a rail loadout sampler and the testing lab. Vacuum and pressure systems available depending on the application.

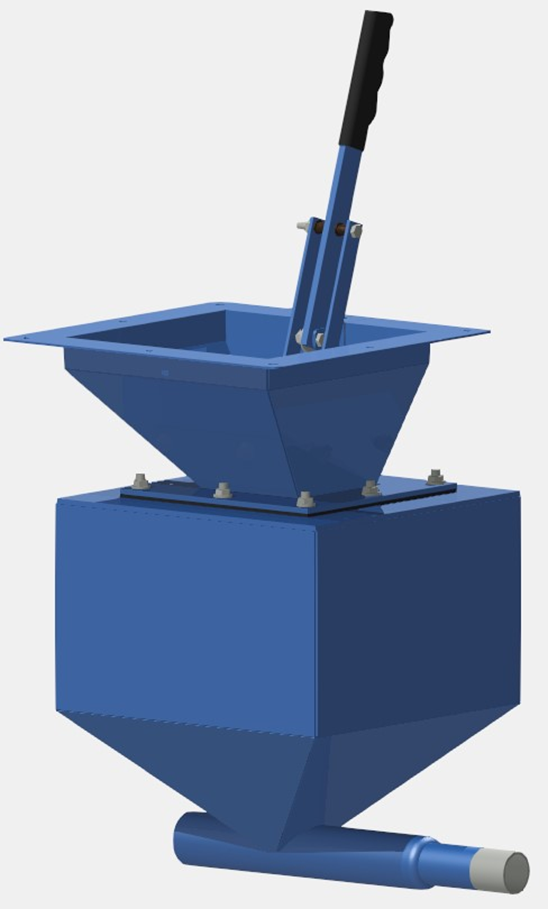

Blower Grain Return
Our Blower Grain Return is designed for installation on our probes and pipe runs of up to approximately 350 feet. This system is designed to fit in a counter-top, but if that is not a practical solution for your layout, an optional steel stand is also available.
- Improved safety by eliminating carrying buckets of grain out of the lab and the risk of slips and falls from steps or icy walkways.

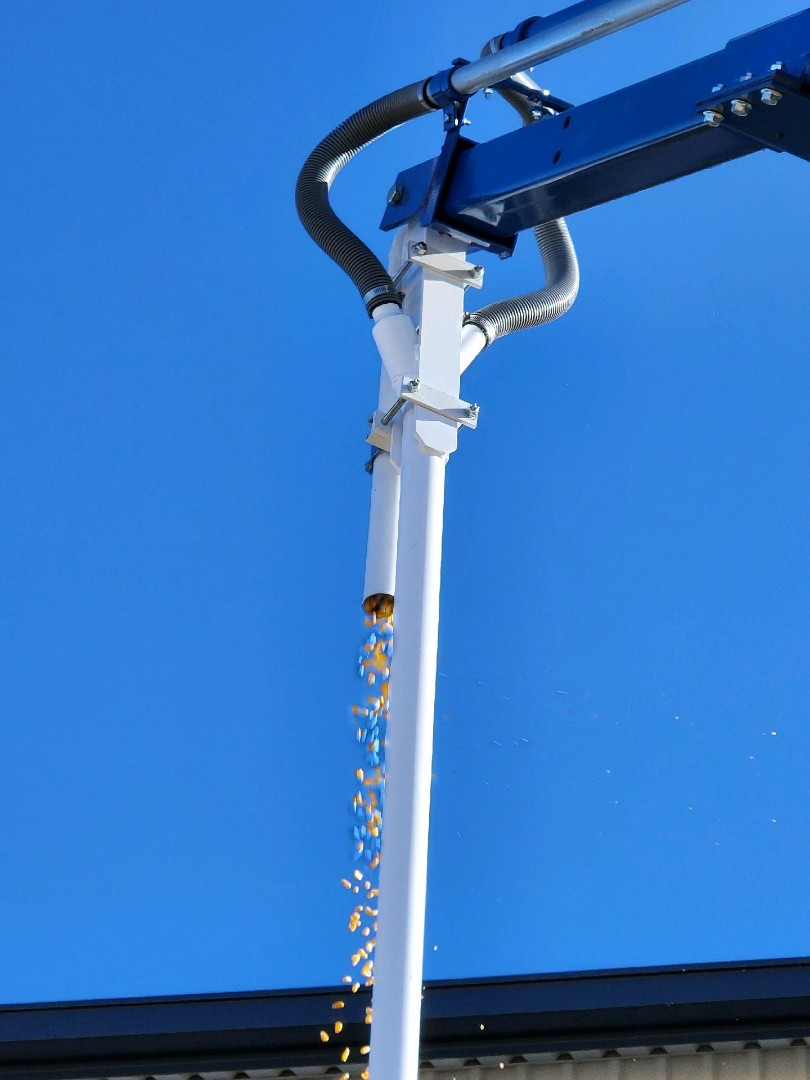

- Discharges back to the probe or jib pole.
- Higher efficiency and labor savings from elimination of hauling samples to the elevator.
- Custom-designed to fit your needs and layout.
- Dump-through countertop design for mounting in your cabinets or free standing.
- Positive locking air valve to eliminate blow back of dust.
Operation is simple:
- Dump the sample into the 9”x 9” square hopper chute. It will hold several samples.
- Open the hopper valve with the lever handle and then close to seal off the hopper.
- Press the start button and the vacuum or blower will run for a preset time then shut off.
Vacuum Grain Reclaim And Transfer Tote
The Vacuum Grain Return with Reclaim Transfer Tote includes a motorized vacuum system with outdoor enclosure, mounting hardware, feed hopper and controls to automatically transfer the grain out to the Grain Reclaim Transfer Tote.
The Grain Reclaim Transfer Tote is a 50-cu.ft. powder coated, steel vacuum tote bin includes airtight lid and dump gate, 2-way forklift channels, internal air separation screen and plexiglass level indication window with 1,500 pounds working capacity on dry shelled corn.
Grain Sample Transfer Tote
- Weather-tight totes for applications that don’t allow for direct return to a truck or the elevator.
- Totes keep grain dry and have a vent screen to control dust and chaff.
- Easily moved with a forklift or can be mounted on a trailer.
- Positive locking dump valve creates an airtight seal and fast unloading of the tote.
- Tote level sight glass indicates when tote is full.
- Side step for easy access to hose connections.
- Vacuum systems for automation of Moisture tester discharge.
